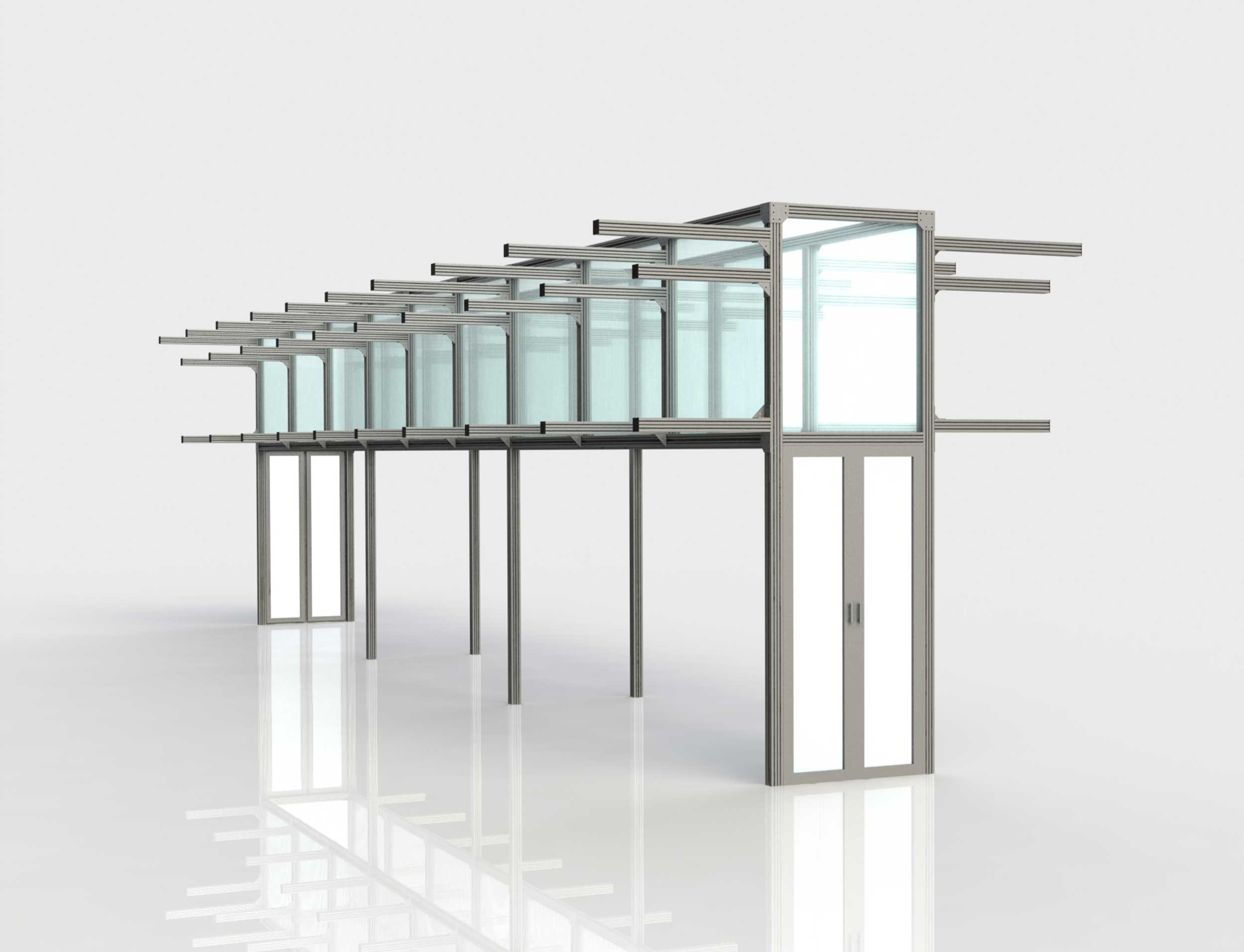

2x2 Structure Frame
Self-Supported Structure Frame is floor mounted containment when ceiling support options are not possible.
Heavy-duty 2” x 2” support frame is ground supported to manage airflow and support most cable trays.
Features
- Heavy-duty 2” posts for self-supported containment configurations
- All four sides feature multiple threaded channels for brackets and mounting
- Optional support arms can support cable trays or other infrastructure components
- Vertical support posts double as door frame for hinged door systems
- Extrusion profile provides frame for fixed or sliding containment panels above servers
Specifications
- 2” x 2” frame system made from 6063-T6 aluminum extrusion
- Available in silver, black or white painted finishes
- Extrusion accepts ¼-20 screws for attaching fire suppression or lighting systems
- Optional pre-assembly of some framing components
- Frame accepts fixed 6mm fixed panels or overlapping 4mm sliding panels
