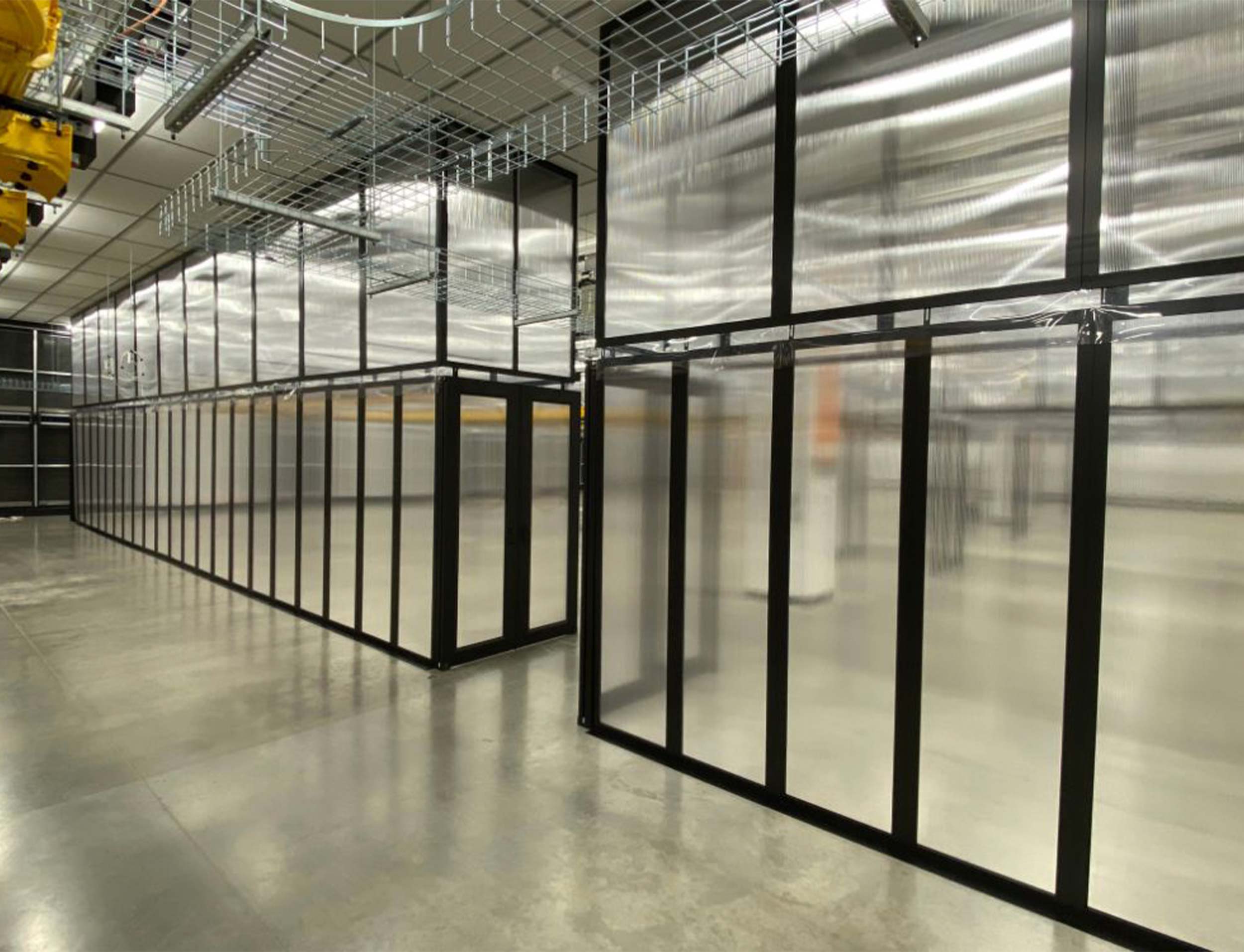

Lite Frame Vertical Aisle Containment Panels
Solid fixed-vertical panel partitions to seal airflow in the hot aisle / cold aisle of a data center server row.
Cool Shield™ Lite Frame Vertical Aisle Containment Panels offer an appealing and efficient method for controlling vertical airflow in containment settings.
Features
- Multiple panel insert options to meet budget, function or fire-rating specs
- Panels framed by Cool Shield™ channel for high rigidity and seal
- Solutions for mounting to strut, channel, beams, ceiling grid, cabinets or floor
- Clear panels for high light transmission
- Pre-assembled at factory to minimize installation time
Specifications
- UL 94, ASTM E 84 Class 1 and FM Global fire ratings available
- Channel features threaded and slotted slides for maximum flexibility
- Rubberized gasket seals against cabinet tops, ceilings and between panels
- Lightweight extrusion is only .40 lbs. per linear foot
- Containment panel system can seal more than 98% of airflow
