Thermal Drop Away Ceiling Panels
Lightweight, thermally activated aisle containment ceiling panels fall out of way before fire suppression release.
The Cool Shield™ Thermal Drop Away Ceiling Panels are UL listed and are intended to be used when the fire suppression heads are located directly above the contained area.
Features
- Clear lightweight panels allow for light pass through
- Framed panels can be lifted off to access above contained area
- Panels designed to disintegrate above 135 degrees
- Material meets NFPA 75 fire rating requirements
- Framed panels can be pre-installed for fast installation
Specifications
- UL Listed and FM Approved for installation beneath fire sprinklers
- Class A Fire Rated ASTM E84-11a
- Weight: 0.75 lbs
- Color: clear Also available: white, sand, latte, merlot, black
- Material: Recyclable, 0.013″ thick rigid vinyl

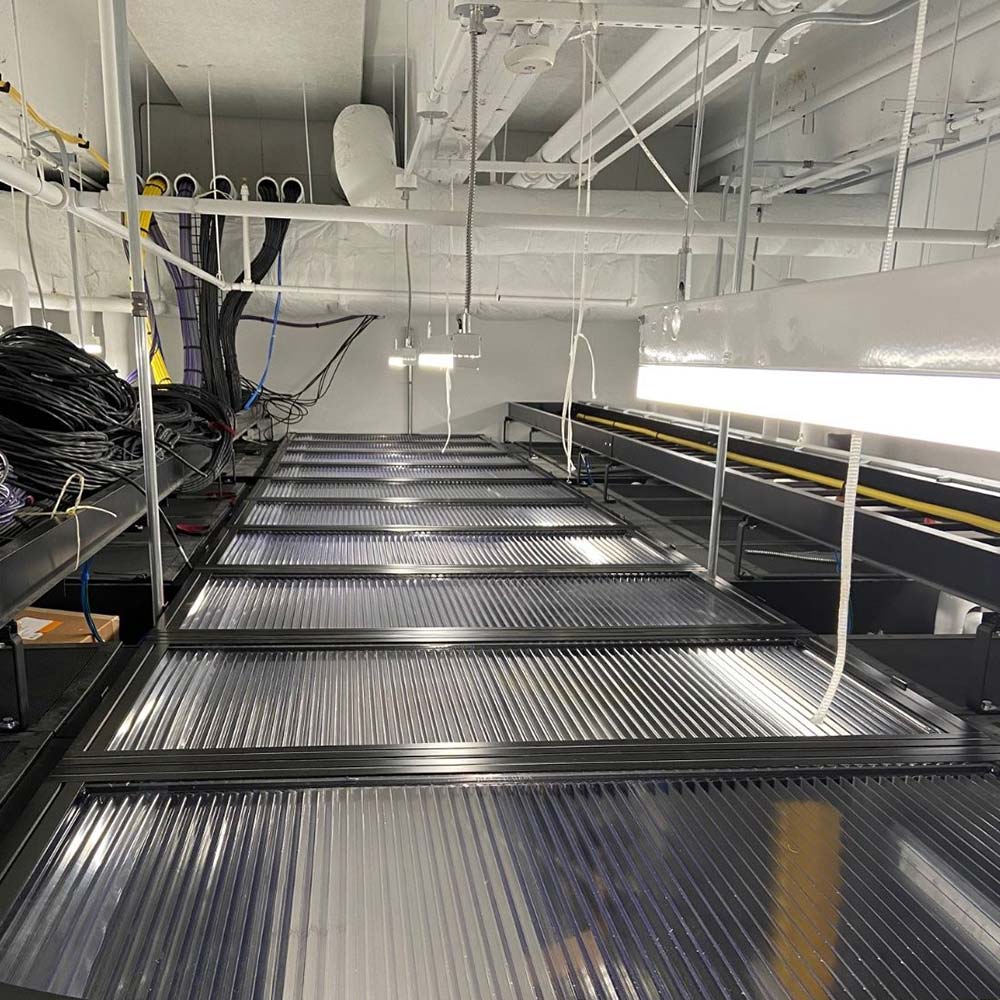

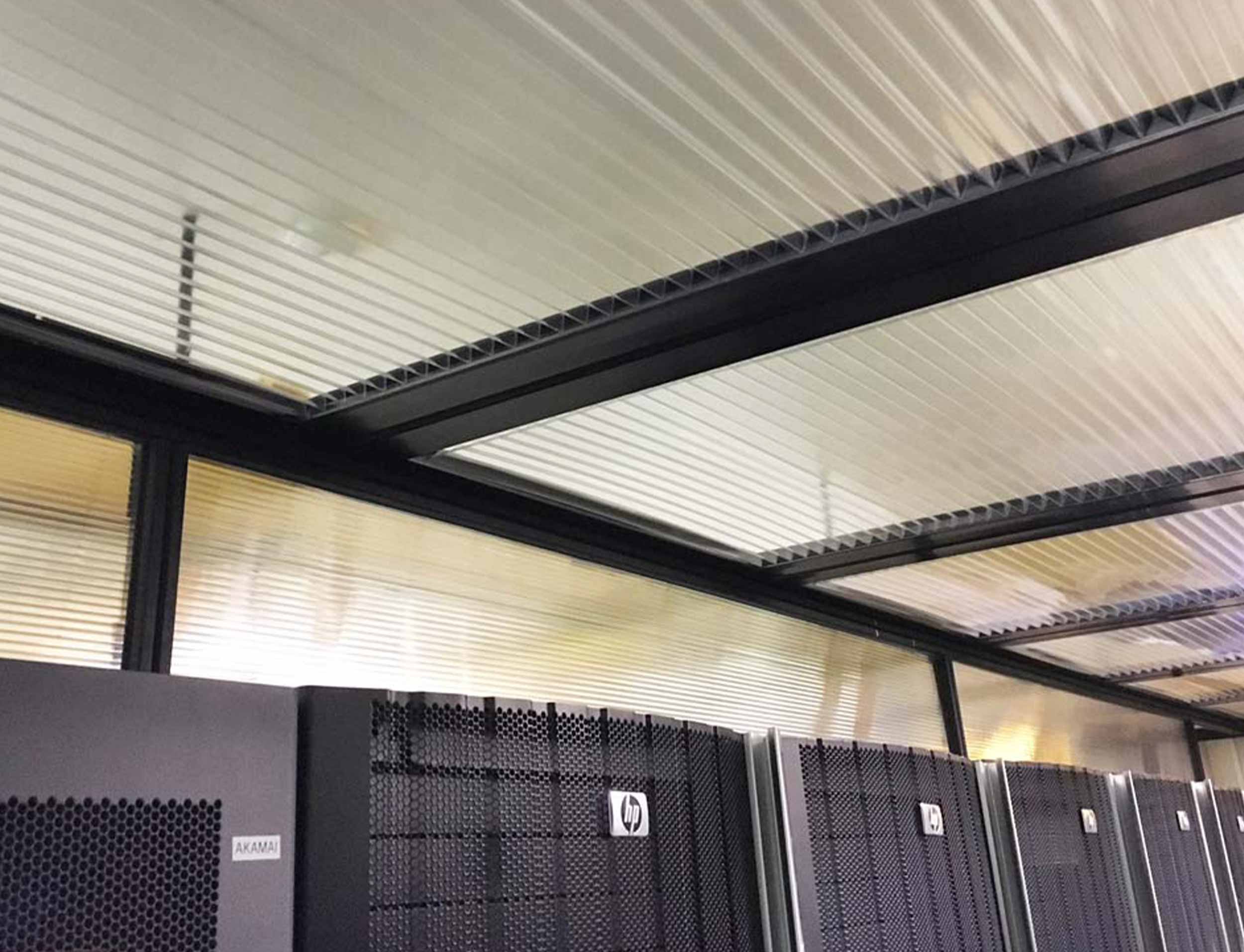

Thermal drop away ceiling panels in Data Centers
About Thermal Drop Away Ceiling Panels for Aisle Containment
Benefits Of The Cool Shield Drop-Away Ceiling Panels
The drop-away thermal panels enable the fire suppression system to work as designed. Some Fire Marshals may require including a smoke detector inside the contained area. However, adding a smoke detector is much easier than re-configuring the entire system. The panels are completely clear so that ambient light will keep the aisle well-lit for data center personnel, with easy access to lights or cable trays by simply removing frame panels that are in the way.
